Thermal Transfer Labeling Machine
GD 350 - Automatic Heat Label Applicator
0.26 - 5.28 US gallon (1 - 20 litre)

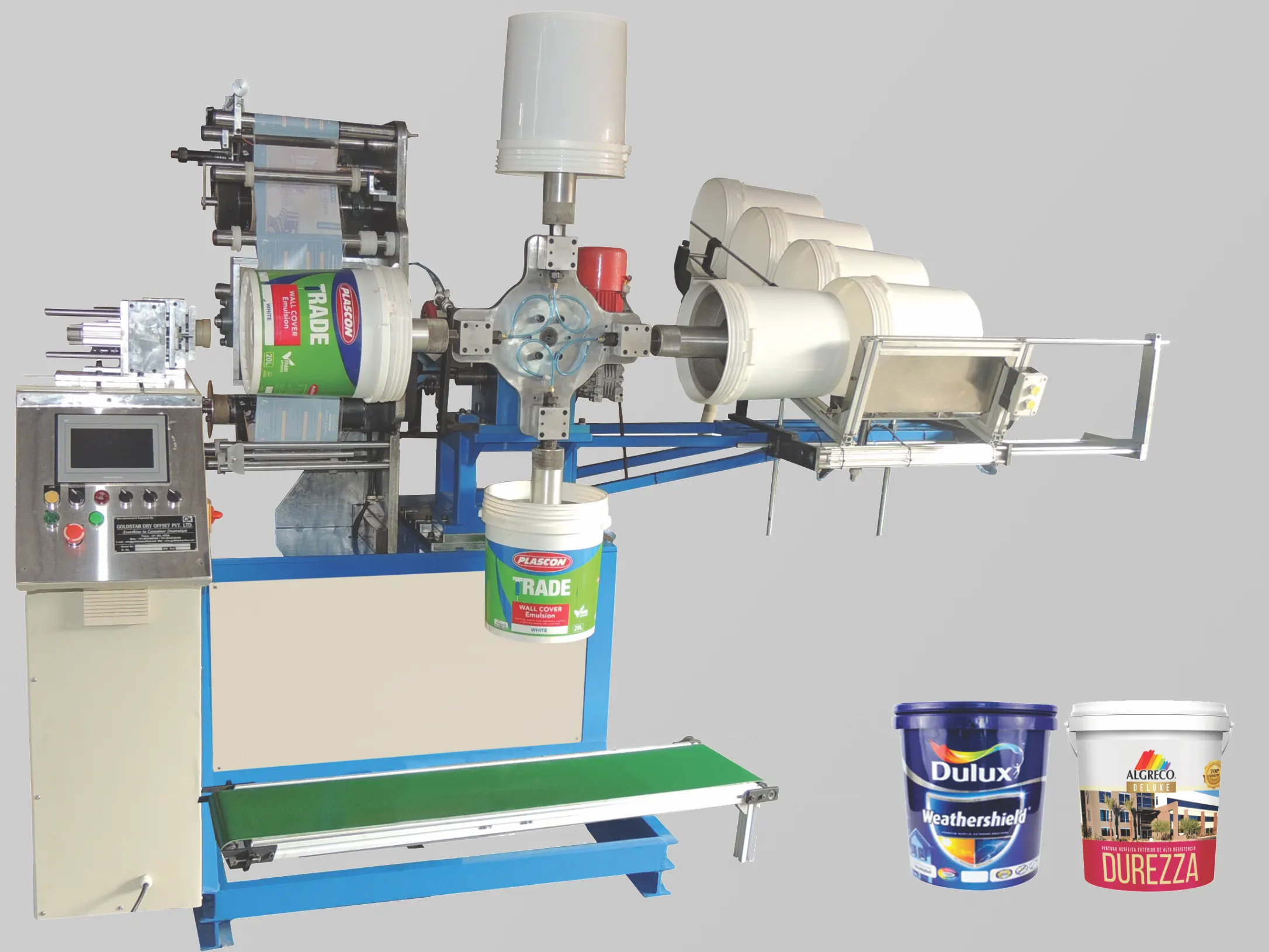

Goldstar's Century 350 Thermal Transfer Labeling Machine features full automatic loading and unloading. It is specifically designed to handle a wide range of cylindrical and conical shaped containers from 1 litre to 20 litres in size ( 0.26 to 5.28 US galls).
The machine is designed to handle and apply a wide range of heat transfer labels and is easily adjustable for different configurations.
The machine is designed to handle and apply a wide range of heat transfer labels and is easily adjustable for different configurations.
Technical
| Unit | Value |
|---|---|
| Min. & Max Dia. | 100mm x 350mm |
| Min. & Max. Height | 100mm x 400mm |
| Mode of container feeding | Automatic on mandrel |
| Container | Cylindrical and conical container |
| Max. Taper container | Taper 6 degrees |
| Electrical requirements | 7.5 KW / 3 phase |
| Air Utilities required | 6/8 Kg/cm² with dry air |
| Machine speed | 800/ per hour for 4 ltr. container 250/ per hour for 20 ltr. container |
Features
- 4 station Indexer with brake motor for positive stop at printing position.
- Machine fully equipped with PLC based system with HMI interface.
- Auto with inline orientation of container.
- Auto loading and unloading of container.
- Vertical Foil movement for positive, accurate foil movement in gravitational direction.
- Individual Variable frequency drive which helps to control speed of the Silícon Roller according to foil.
- Special provision is made to avoid damage of silicon roller in case of power failure.
- Individual motor provided for orientation spinning device.
- Forward, backward, angular and lateral movement provisions provided on indexing head help to accommodate a wide range of containers.
- Taper adjustment for up to 6 degree angle included.
